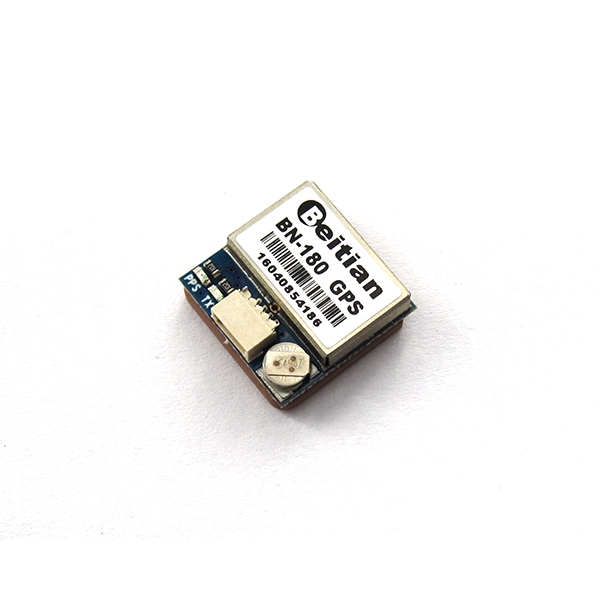

BEITIAN BN-180 GPS Module for DIY Racing Drones

Specifications :
Chipset M8030-KT
Receiving Format : GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS
Frequency : GPS L1, GLONASS L1, BeiDou B1, SBAS L1, Galileo E1
Channels : 72 Searching Channel

Sensitivity :
Tracking : -167dBm
Reacquisition : -160dBm
Cold start : -148dBm
Hot start : -156dBm

Accuracy :
Position Horizontal : 2.0 m CEP 2D RMS SBAS Enable (Typical Open Sky)
Velocity : 0.1m/sec 95% (SA off)
Timing : 1us synchronized to GPS time

Acquisition Time :
Cold Start : 26s
Warm start : 25s
Hot start : 1s

Data and Update Rate :
Support Rate : 4800bps to 921600bps,Default 9600bps
Data Level : TTL or RS-232,Default TTL level
Data Protocol : NMEA-0183 or UBX, Default NMEA-0183
Single GNSS : 1Hz-18Hz
Concurrent GNSS : 1Hz-10Hz,Default 1Hz

Operational Limits :
Altitude : 50,000m Max
Velocity : 515m/s Max
Acceleration : Less than 4g

Power consumption :
VCC : DC Voltage
3.0V-5.5V,Typical: 5.0V
Current : Capture 50mA/5.0V
Operating temp : -40 °C to +85°C
Storage Temp : -40°C to +105°C

Indicator :
TX LED : blue : data output, TX LED flashing
PPS LED : red : PPS LED not bright when GPS not fixed, flashing when fixed

Wiring:
GND, TX output, RX input, VCC (3.0v-5.5v)

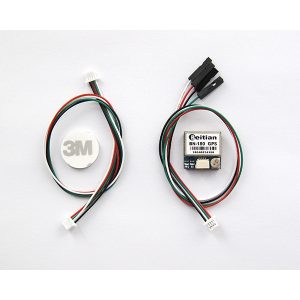

Included :
1 x BN-180 GPS Module
2 x 15cm Cable
