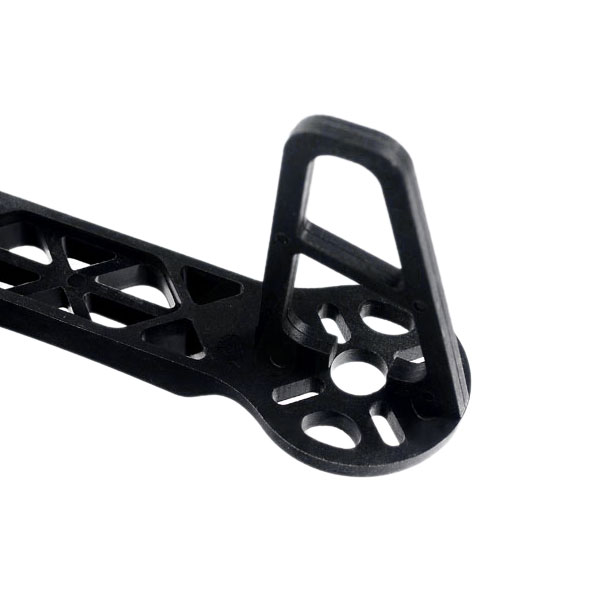

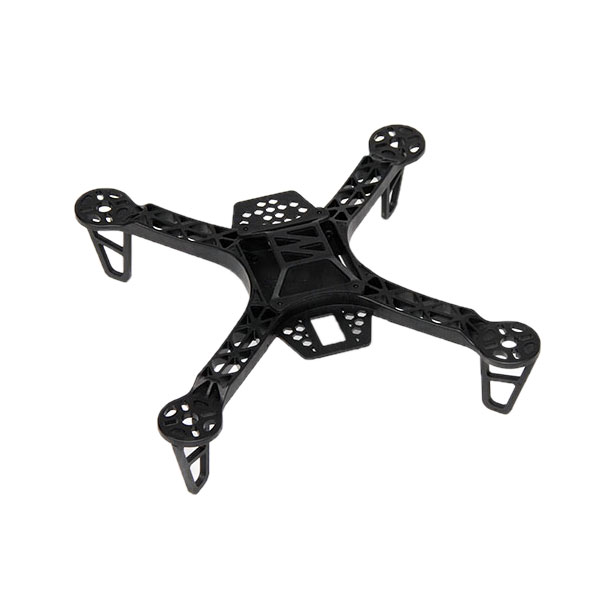

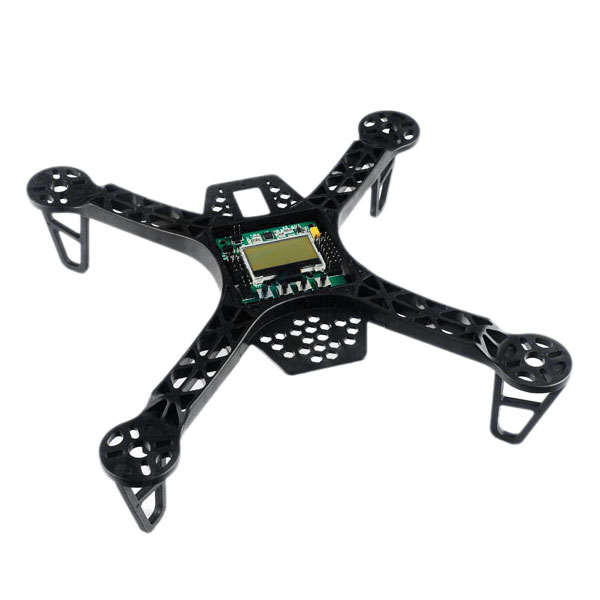

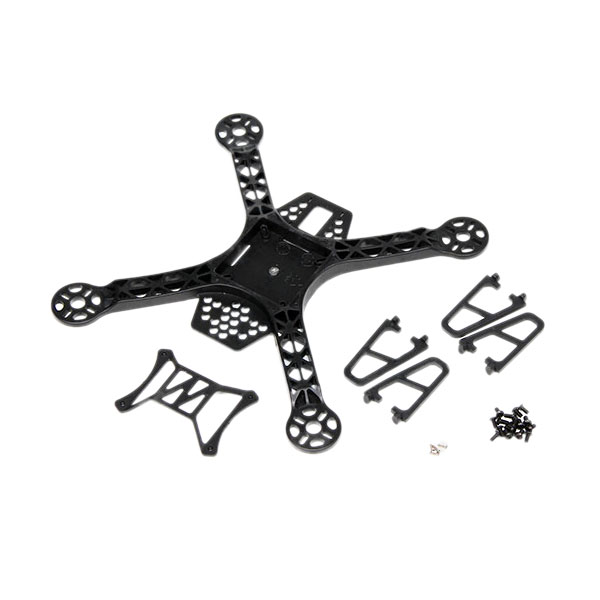

Diatone FPV 250 V1 Frame


Width: 250mm
Height: 80mm
Weight: 110g(without electronics)
Motor Mount Bolt Holes: 12/16/19mm

Built from high quality and ultra durable polyamide nylon.
One-piece nylon construction for durability.
Mounting support for a 2 servo pan and tilt camera and video transmitter.

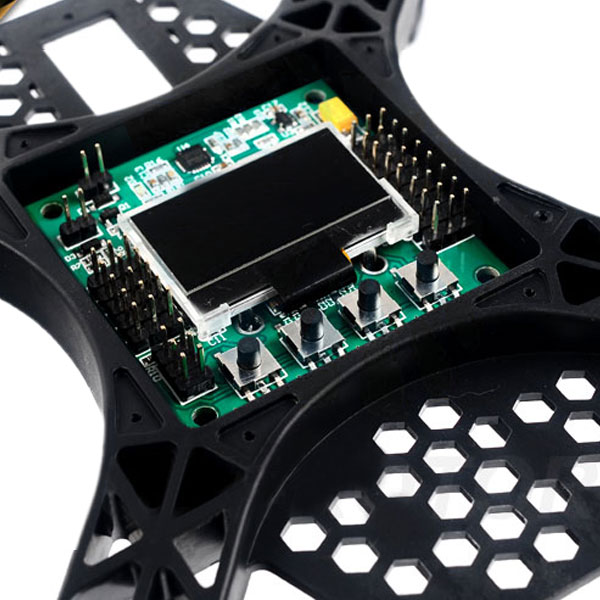

Large 55×55mm cage bay to protect flight controller.
Wide range of motor and power potions.

Required (package not include):
4 x Motors 1506~2208
4 x 10~15 Amp ESC
4 x 5030~5045 Prop (2CW & 2CCW)
1 x Multi-Rotor Control Board (Recommend KK2.1)
1 x 800~1300mAh 7.4~11.1V (2s or 3s) Lipoly battery

The following products are usage for this FPV250 V1 frame kit:

ZMR 1804 2400KV motor
DYS BE1806 1400KV Brushless Motor
Eachine BG1806 2300KV Brushless Motor
EMAX MT1806 KV2280 Brushless Motor
EMAX MT1804 KV2480 Brushless Motor
EMAX BL1806 1650KV Brushless Outrunner Motor
JFRC D2206 1900KV motor
Emax Simonk Series 12A ESC
SimonK 10A ESC&RCX 1804 2400KV Motor Gemfan 5030 Propeller
Gemfan 5030 Plastic Propeller
5030 Carbon Fiber Propellers
KK2.1 Flight Controller
Ace 11.1v 1300mah 25c lipo battery
YKS 1300mah 7.4v 20C LiPo Battery
